NOTE: Omnidirectional fluxes are for
particles >10 MeV and >1 MeV respectively for protons and electrons. The
data are derived from the AP-8
and AE-8 models, respectively, and are shown in
an idealised dipole representation of the Earth’s magnetic field.

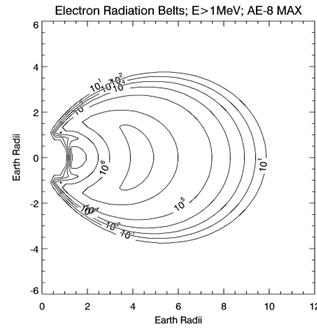

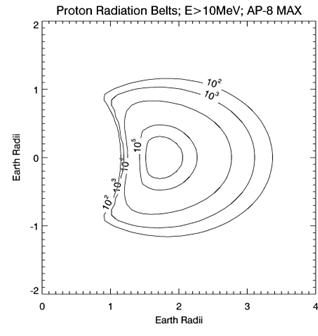

Figure I-1: Contour plots of the proton and electron radiation belts
