E.7 Figures

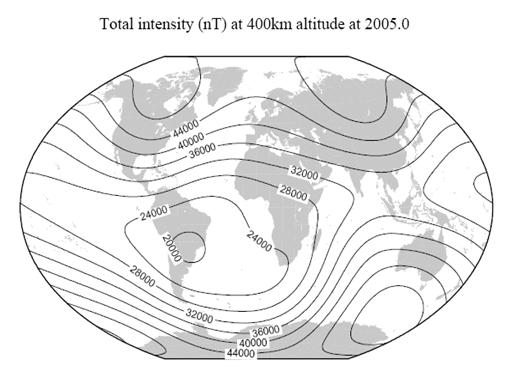

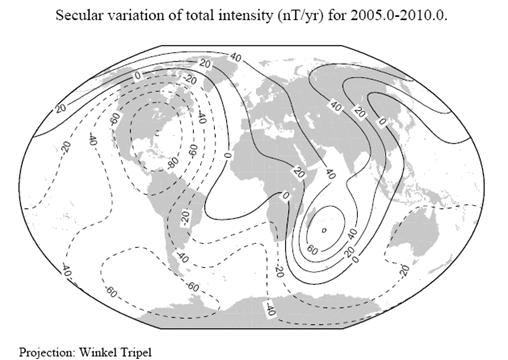

Figure E-1: The IGRF-10 field strength (nT, contour level = 4 000nT, at 2005) and secular variation (nT yr^-1, contour level = 20 nT yr^-1, valid for 2005), at geodetic altitude 400 km with respect to the WGS-84 reference ellipsoid).
